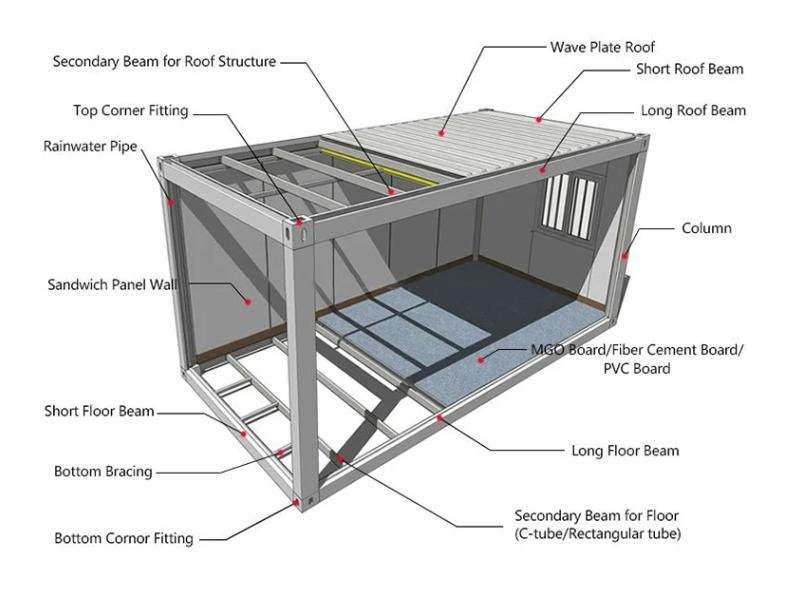

HIGH GRADE FLAT PACK CONTAINER HOUSE
| SIZE:5800*2400*2896mm | DESC. |
| MAIN STRUCTURE 3.0MM | TOP FRAMES | 180mm width L5632mm/L2688mm，2.75mm cross beams with gal.80g/㎡ |
| gal.C80 cross supporting part，30*30mm gal tubes，20*20mm gal tubes |
| W water baffle |
| BOTTOM FRAMES | 160mm width L5632mm/L2688mm，2.75mm gal.cross beams with gal.80g/㎡ |
| gal tubes 50*100*1.3mm cross suppports with gal.80g/㎡ |
| STANDING COLUMN | 2.75mm gal.column with gal.80g/㎡，210mm*150mm width&L2530mm height |
| L connector 10mm with gal.80g/㎡ |
| L style column strengthened parts |
| LIFTING HEAD | upper head 210*150*210mm with gal.80g/㎡ |
| 210*150*160mm with gal.80g/㎡ |
| FASTENING BOLT | inner-hex bolts12*40mm with gal.(welded&Electrostatic spraying)。 |
| COLOR | white electrostatic spray |
| FRAME-PARTS | FLASHING PARTS | flashing parts all in one piece，5633mm/2688mm |
| COLOR-STEEL SEAL ROOF | 0.45mm thickness color-steel tiles with 360° fastened,include butyl tape for waterproofing |
| ROOF INSULATION | 75mm thickness glasswool insulation with silver paper(14kg/m³) |
| DOWNPIPE | 50 downpipes |
| FLOOR | CEMENT-FIBRE FLOOR | 18mm thickness special cement-fibre floor |
| PVC FLOOR LEATHER | 1.6mm thickness |
| SUSPENDED CEILING | 831 SUSPENDED CEILING | 0.3mm thickness |
| INTERNAL DECORATION PARTS | SKIRTING LINE | PVC finished skirting lines |
| CONCAVE LINE | 0.4mm thickness color-steel white-gray concave line |
| CONCAVE LINE FASTENER | L100mm*136mm*85mm |
| DOOR | HIGH-GRADE STEEL DOOR | 0.6mm color-steel sheets，1.0mm thickness frame,925*1970mm（adapts to 950 style wall panels） |
| WINDOWS（2 units） | HIGH-GRADE PLASTIC-STEEL WINDOWS | insulation with 3.0mm thinkess glasses，with anti-theft frames and screening,925*1130mm |
| WALL SANDWICH PANELS | DOUBLE 0.4MM SANDWICH PANELS | 75mm with 80kg/m³ density（950 style) |
| ACCESSORIES |
| sealant,drill-tail screws |
| ELECTRICITY SYSTEMS | HIGH-GRADE ELECTRICITY PARTS | 6m²、2.5m²、1.5m² copper electric line as international standard，high-quality socket for air-conditioning(1pc),five-hole socket 1 pc,single-open switch 1pc,40*60mm 24W LED ceiling light 2pcs，J-8 electricity-distribution box 1pc,32A leakage protector 1pc,2P10A circuit breaker 1pc,32A industry socket 1 set,industry socket box 1pc,concealed conjunction box 6pcs |
Steel Structure Manufacturing Plant Characteristics:
1. Wide span: single span or multiple spans, the max span is 36m without middle column.
2. Low cost: Unit price range from USD35/m2 to USD70/m2 according to customers' request.
3. Fast construction and easy installation.
4. Long using life. up to 50 years.
5. Easy construction, time-saving, and labor saving
6. Flexible layout, beautiful appearances, and higher space efficiency
7. Be used as warehouses, workshops, shopping mall, dinning hall, stadium, etc.
8. Others: environmental protection, stable structure, earthquake proofing, water proofing, and energy conserving.
How To Build A Prefabricated Steel Structure Warehouse?
You should give us the following data:
1)Design Data
1.live load on roof(KN/M2)
2.wind speed(KM/H)
3.snow load (KG/M2) if have
4.earthquake load if have
5.crane (if have), lift height, lift capacity,
2)Size
1.width
2.length
3.eave height
4.roof slope
3)Type
1.single slope OR double slope
2.muti slope OR single span
3.double-span OR Multi-span
4.single floor OR two floors
4)Intercolumn
5m, or 6m….
5)Windows &Door
1.quantity
2.size
3.Location
4.PVC or aluminum
6)Column &Beam
straight cross-section OR Variable cross-section
7)Roof & Wall Panel
1.colorfull corrugated steel sheet 0.326~0.8mm thick ,YX28-205-820(820mm wide),
2.sandwich panel with EPS,ROCK WOOL,PU etc, insulation thickness around 30 ~300mm,
3.sheet+glass fiber(thick 50mm~200mm)
8)Purlin
1.C purlin size:120~C320,Z
2.purlin size100~Z200
9)Accessories
Do you need the skylight belts, Ventilators, down pipe, out gutter etc?
10)Surface Treatment
Shot blasting with anti rust paint or hot dip galvanize
